Special Order, allow 3 to 4 weeks delivery if in stock with Laguna. Check with a Busy Bee Team member for accurate stock status.

Prices on Industrial machines from Laguna are subject to change, due to the nature of how Laguna quotes on these machines. The pricing listed on our website may not be accurate. Please speak with your Busy Bee Sales representative or call 1-800-461-2879 for more accurate information on pricing and lead time. Prices are subject to change without notice.

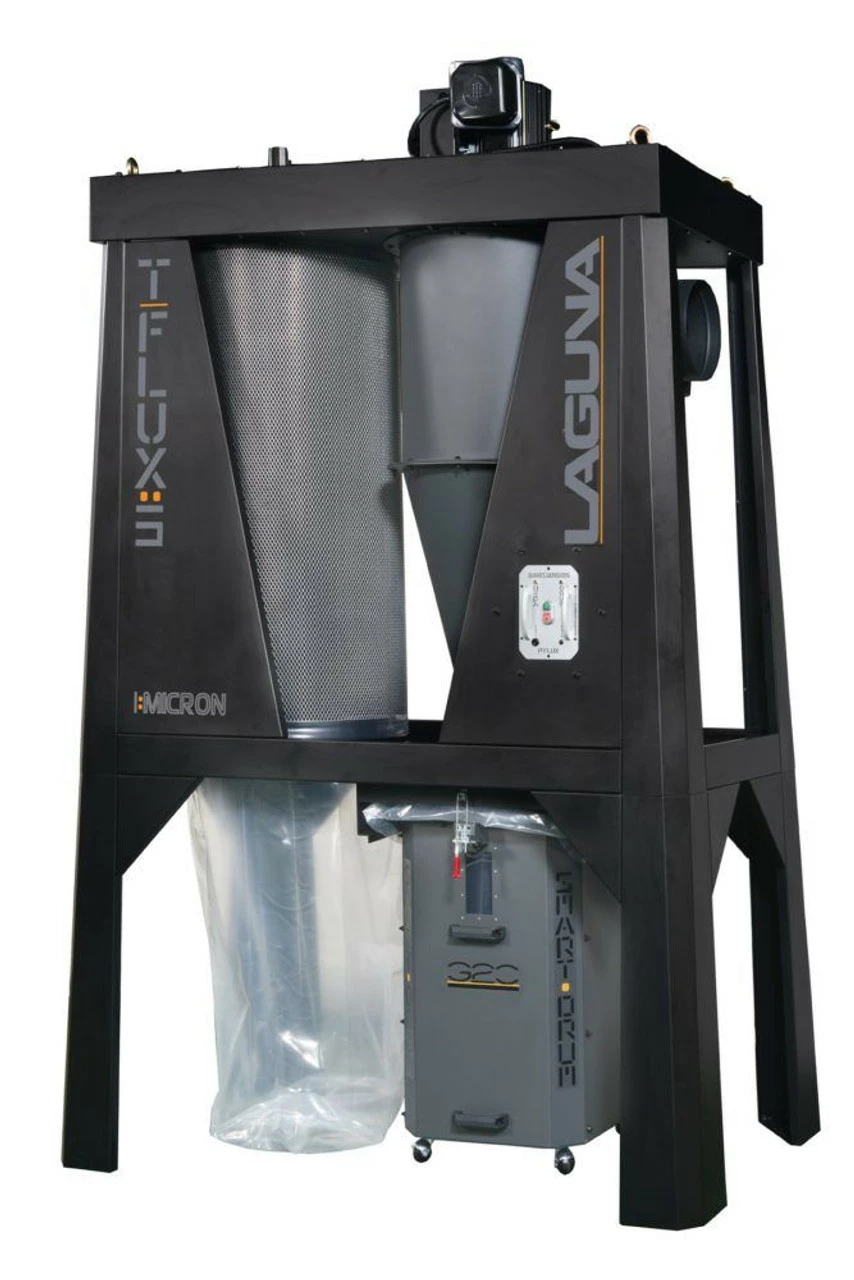

MDCTF52201, Laguna T|Flux:5 Auto Clean, 5HP 220V Cyclone Dust Collector

The T|Flux series from Laguna starts to get serious. The Titan cyclones are geared towards clients who desire a single central unit for the entire shop. The T|Flux cyclones are equipped with a 10″ port that splits into 3 x 4″, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations.

All models are outfitted with smart drums which alert the user when the drums reach capacity. Automatic canister cleaning is controlled by a timer that turns on every work hour & runs 10 seconds clockwise & counter clockwise. The 1 micron canister has a huge surface area and filtrates 99.97% of particles ranging from 0.2 to 2 microns. Smart Drums comes standard with high quality casters and feature our unique quick disconnect design.

Features:

Motor HP: 5 HP
220V, 22.4Amps, 1 Phase
40 AMP Recommended Breaker
60 Hertz
3450 RPM
Switch Type: Sunken Radio Frequency Remote switch with LED full drum & LED Filter dirt detection
Hand Held Remote Control: High Frequency

Specifications:

Shop Setting CFM*: 2450
Inlet CFM: 4295
Max Static Pressure (Inches of Water): 12.1″
Impeller/Fan Size: 16″
Impeller Material: Steel
Impeller Type: Radial Fin
Balanced To: ISO 1940
Inlet Diameter: 10″
Drum Capacity: 54 Gal
Octagon Drum: Low Pressure Suction
Drum Collection Bag (Dia. x L): Plastic Bag (740 x 1300mmL)
Canister Filter Type: Black 1 Micron
Filtration Efficiency: 1.2-2 Micron @ 99.97%
MERV Rating: 12
Canister Diameter: 600mm (23.62″)
Canister Length: 1200mm (47.24″)
Filter Surface Area: 15m²/162ft²
Canister Cleaning: Auto Clean (Gear Motor)/ Cleans every hour 10 sec clockwise, 10 sec counter-clockwise
Canister Filter Lower Dust Collection: Plastic Bag (610 x 600mmL)
Wheels: None
US/CSA Approved: Yes
Decibel Reading: 76dB(A)(@9.8ft)
Machine Weight: 325 kgs/717 lbs
Shipping Weight: 430 kgs / 948 lbs
Shipping Dimensions (L x W x H): 75″ x 39″ x 80″
Assembled Dimensions (L x W x H): 73″ x 39″ x 111″ (1845 x 989 x 2810mm)Assembled Dimensions (L x W x H): 46″ x 27″ x 79″ | 1178x690x2025mm
