Buy 🤩 DUST COLLECTOR 3HP W/CANISTERS CSA CX402 🤩

CX402

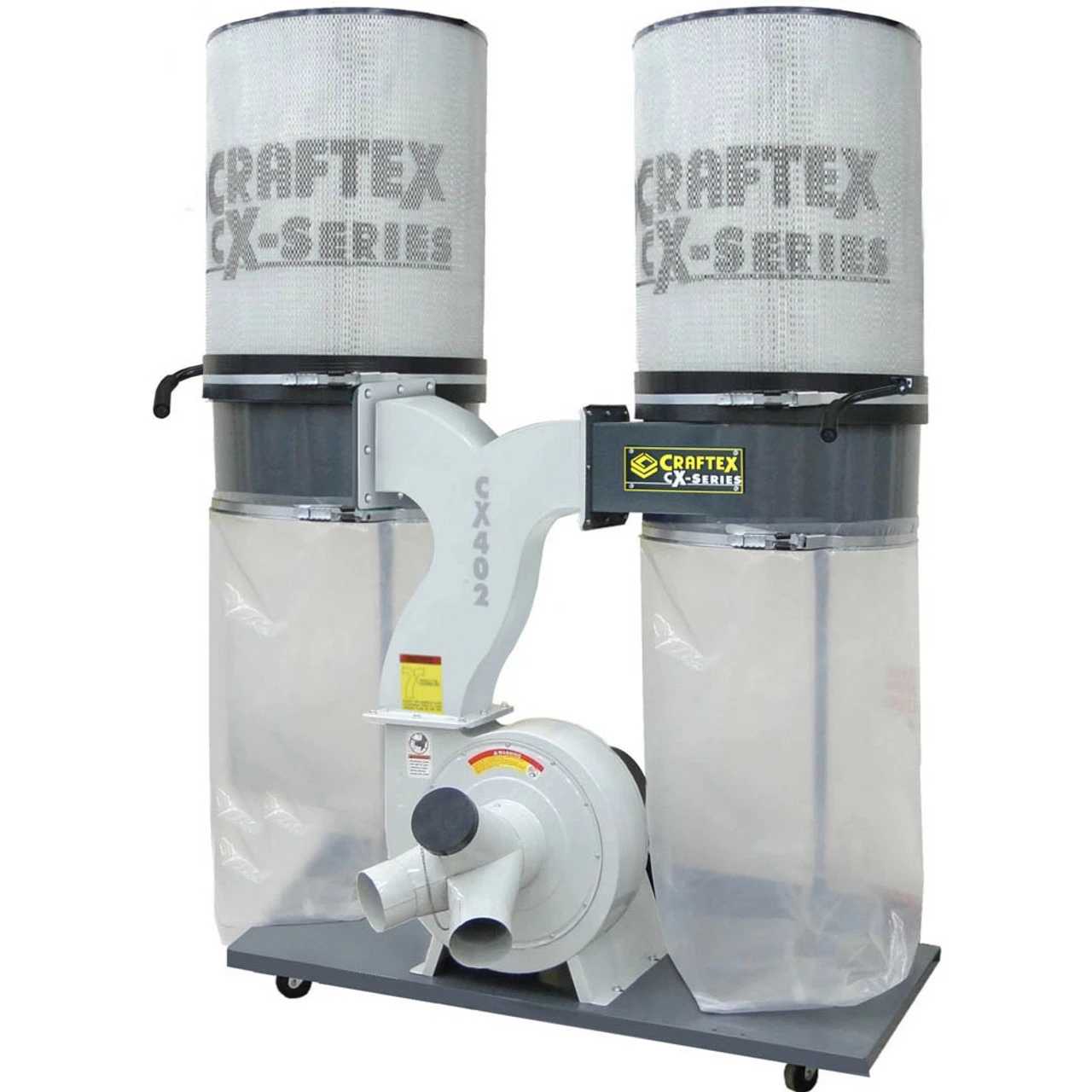

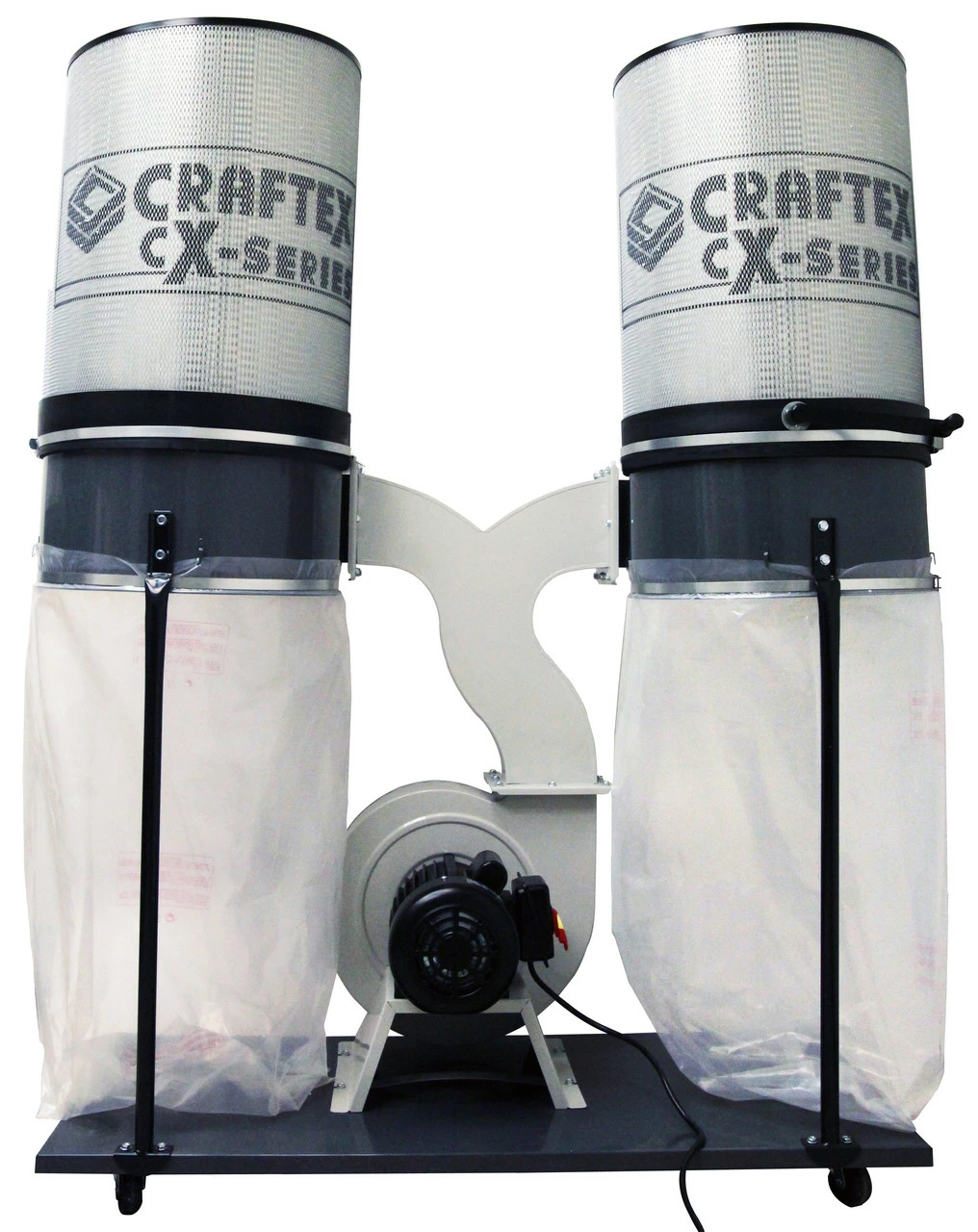

3HP Dust Collector with Dual Canisters

This heavy duty production dust collector is designed with the large shop in mind.
Featuring dual canisters, conjoining steel duct arm and a large precision balanced impeller, this dust collector tackles the heaviest of jobs. The canisters are made of spun bond polyester and feature 6 times the filtering area of standard cloth bags. Convenient canister cleaning handles allow for easy removal of caked on dust with a simple clockwise or counter clockwise half turn.
The steel duct arm from the aluminum impeller to the canisters improves air flow and allow for quick removal of large chips. You will appreciate the power, improved efficiency and reliability of this new dust collector.

Like all CX-Series machines, this 3HP dust collector features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

Features

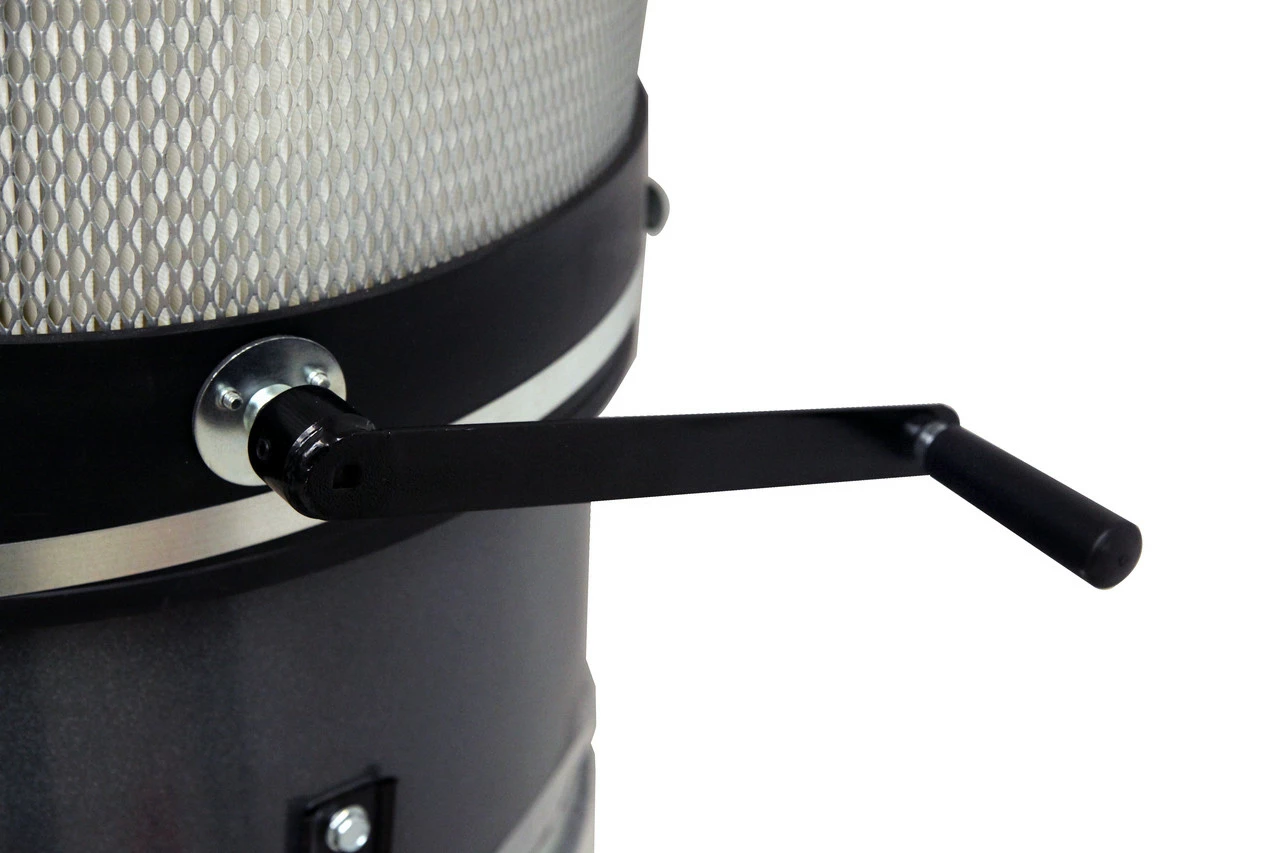

Dual Canister Filters with cleaning handle
Steel Duct Arm
Impeller – 12-3/4″ Aluminum
Integrated mobile base

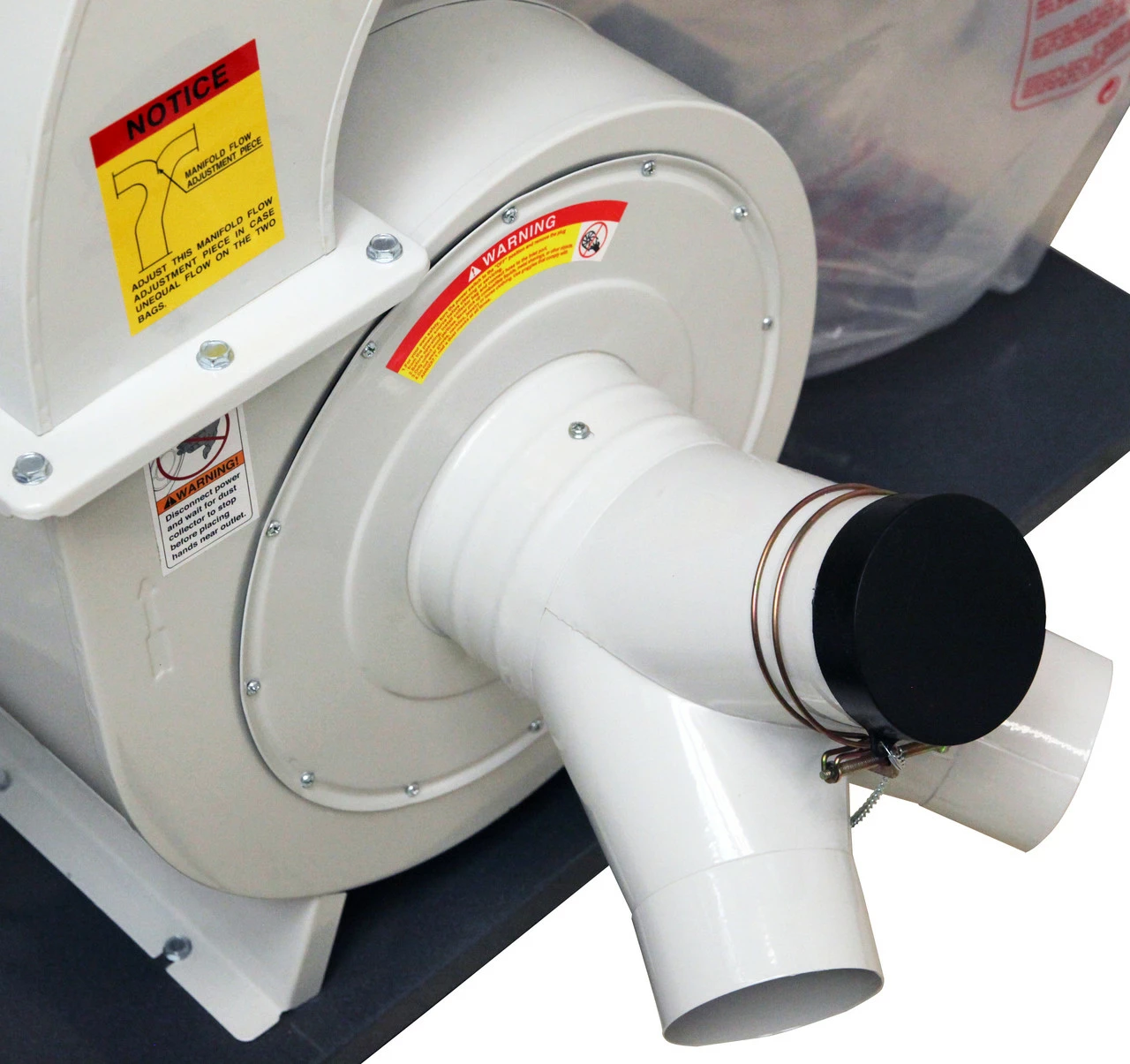

6″ main Inlet with removable “Y” (three 4″ inlets)
Powder Coated Paint
Includes plastic bottom bags & quick release clamps
Bearings are sealed & permanently lubricated
CSA Approved
Made in an ISO 9001 Factory
3 Year Warranty

Specifications

Motor – 3HP, 220V, 60HZ, TEFC, 12 Amps
Motor Speed – 3450 RPM
Air Suction Capacity – 2,320 CFM
Static Pressure – 15.5″
Inlet – 6″ main with removable “Y” (three 4″ inlets)
Noise Level – 85 dB
Base Measurements – 39” x 31 1/2” x 69”
Weight – 85 kg (189 lbs)

Comes in 3-Boxes
1st Box N.W – 68 Kgs, G.W – 75KGS
Dimension – 50” x 21.5” x 22”
2nd Box N.W – 9 Kgs, G.W – 13 Kgs
Dimension: 21” x 21” x 28”
3rd Box N.W – 9 Kgs, G.W – 13 Kgs
Dimension: 21” x 21” x 28”
